Model catalog
Every family in the repository, rendered from its own source. Open any part in the OpenSCAD Customizer, or grab the ready-made profiles on MakerWorld.
🧱 Core
The fundamental HomeRacker building system with modular components:
📐 Gridfinity
Gridfinity-compatible components for modular storage integration:
🔩 Rackmount Ears
Fully customizable rackmount ears for standard 10" and 19" rack mounting.
🧲 Wall Mount
Wall-mountable bracket for attaching HomeRacker supports to vertical surfaces.
🔗 Racklink
Connects independent rack columns together via double U-shaped sleeves for better stability and a clean look. Build small columns, join them later.
🖼️ Panel
Plain mounting panel that fits into the HomeRacker scaffold. Use as-is for blank panels or as a base for custom cutouts (keystone jacks, switches, etc.). Supports Inter-Fit (inset) and Full Cover (overlap) integration types. Includes a standard 10"/19" rack panel variant with configurable bore patterns, an optional back-side truss stiffener, and an optional split mode (hinge connector + lock pin) for printing wide panels in halves.
🔌 Keystone
Parametric keystone jack socket module for integrating standard keystone connectors into virtually any panels (using BOSL2 `diff("keystone")`). Supports 4 rotation angles and includes snap-fit label plate slots for port identification, mountable above or below the jack.
🦶 Foot
Modular foot insert that plugs into any connector arm used as contact surface at the bottom of a rack. Decoupled from the connector for maximum flexibility, print in TPU for better grip and load distribution.

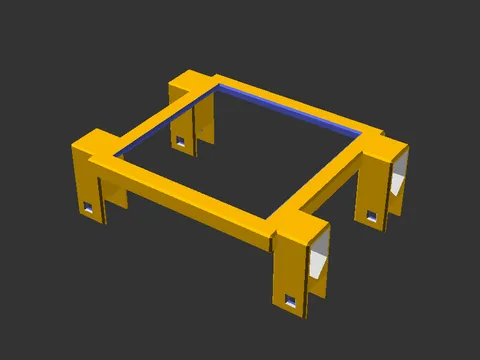

🗜️ Bracket
Clamp that wraps a device from above/below and hangs it in the frame via lock pins. Mount wings on both flanks absorb whatever the device width misses on the 15mm grid, so the lock pins always land on the right position on a support. Nothing sits below/above the device, keeping airflow and cabling clear.
🧤 Sleeve
A 3-sided U-shaped sleeve that wraps around a vertical HomeRacker support. Reusable attachment primitive with lock pin holes on both sides.
📌 Pinpusher
A utility tool for removing lock pins from connectors.
🔄 Inception
Meta models for organizing HomeRacker parts within the HomeRacker ecosystem, Gridfinity bins and frame-mounted grids for storing supports and other bits.
